PRODUCT DESCRIPTION
Radiator Size
Core Size: 478H x 717W x 44Thick mm
Overall Size: 533H x 856W mm
Upper inlets: 38mm located on the driver's side
Lower outlets: 40mm located on the passenger side
Transmission Oil Cooler:⊿32℅215℅G1/4ㄗZㄘ
High Performance Racing Spec.
3-Row of tubes Core Racing Design

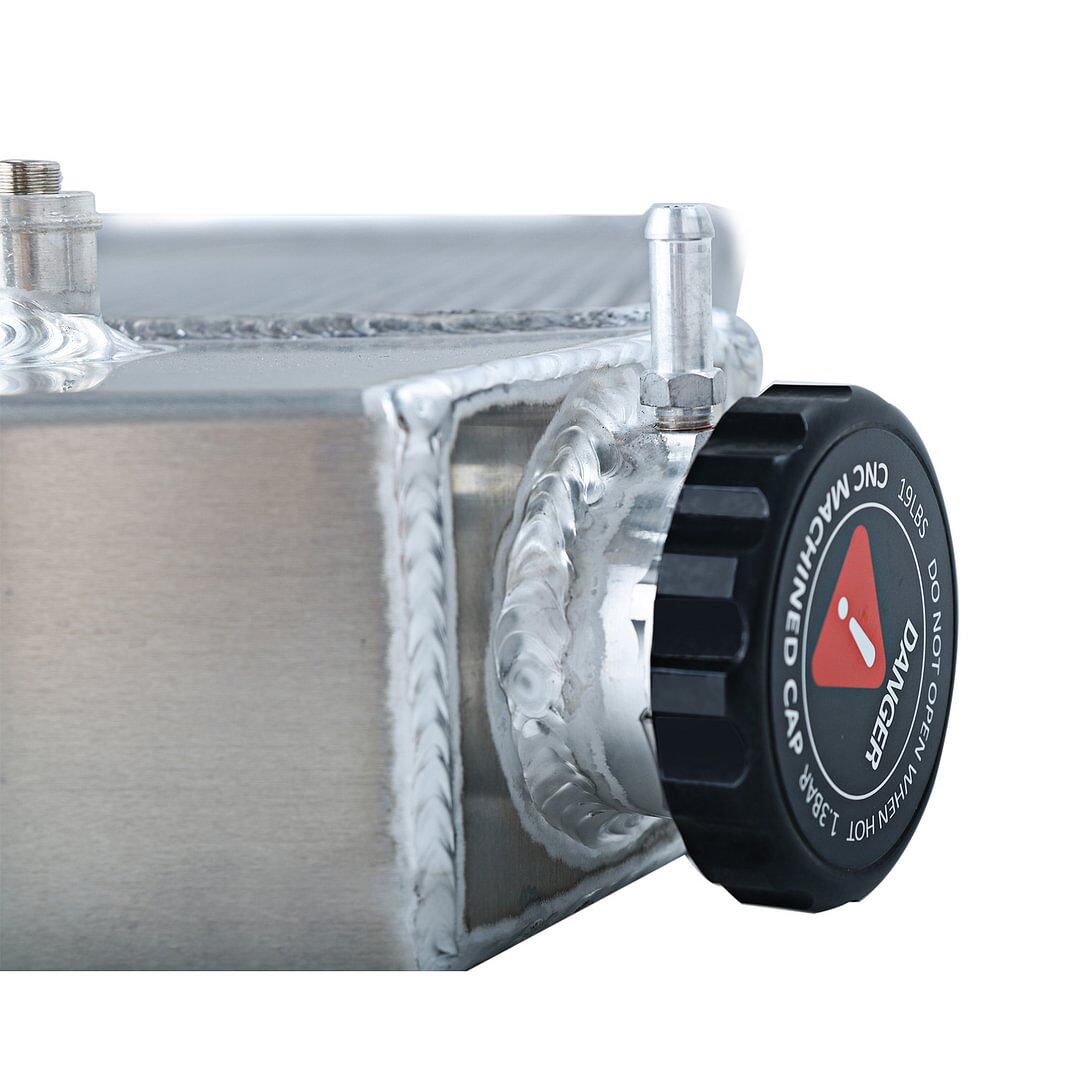

CNC machined filler neck and cap

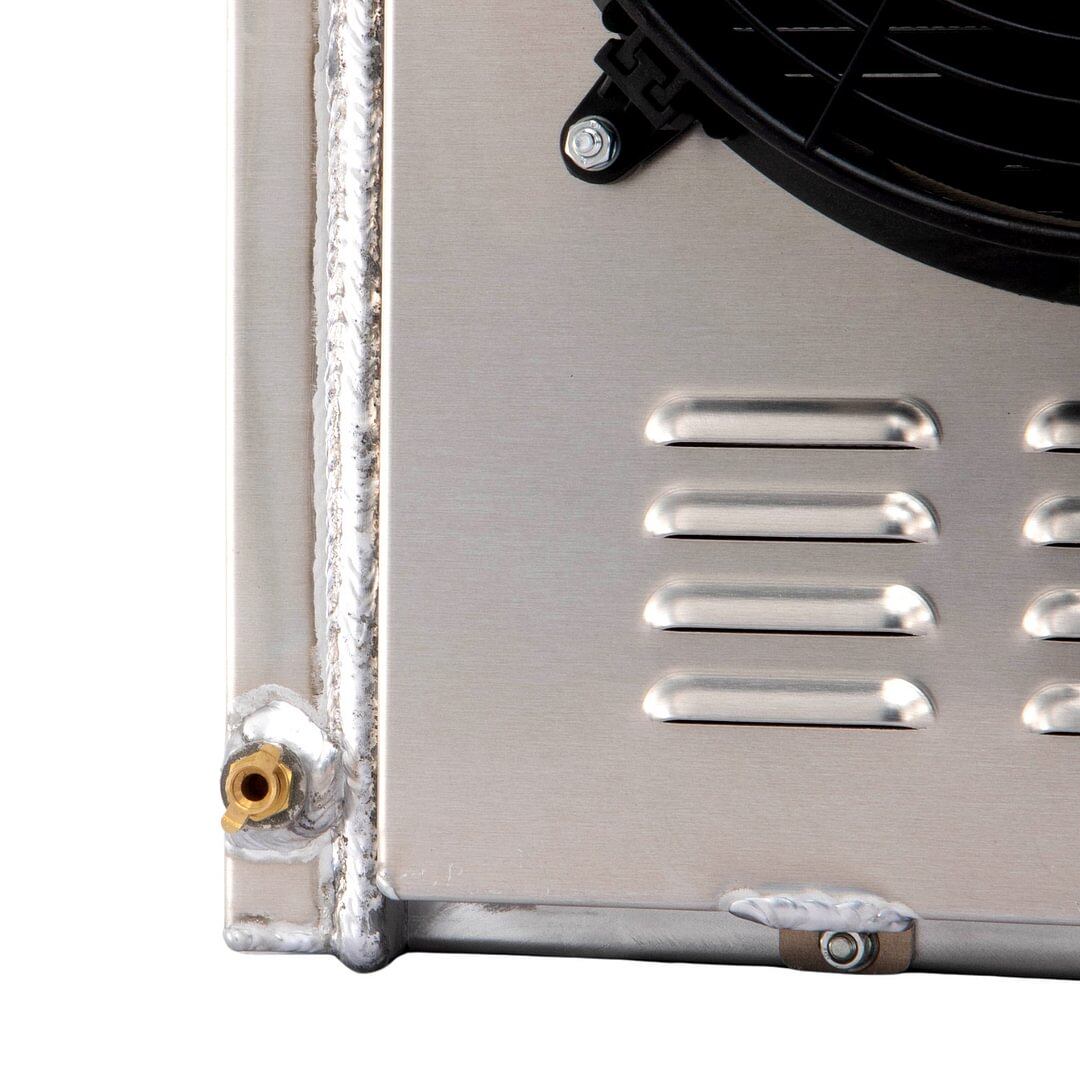

OEM Style Brass Petcock Drain.
Please Check the Size Before You Buy!

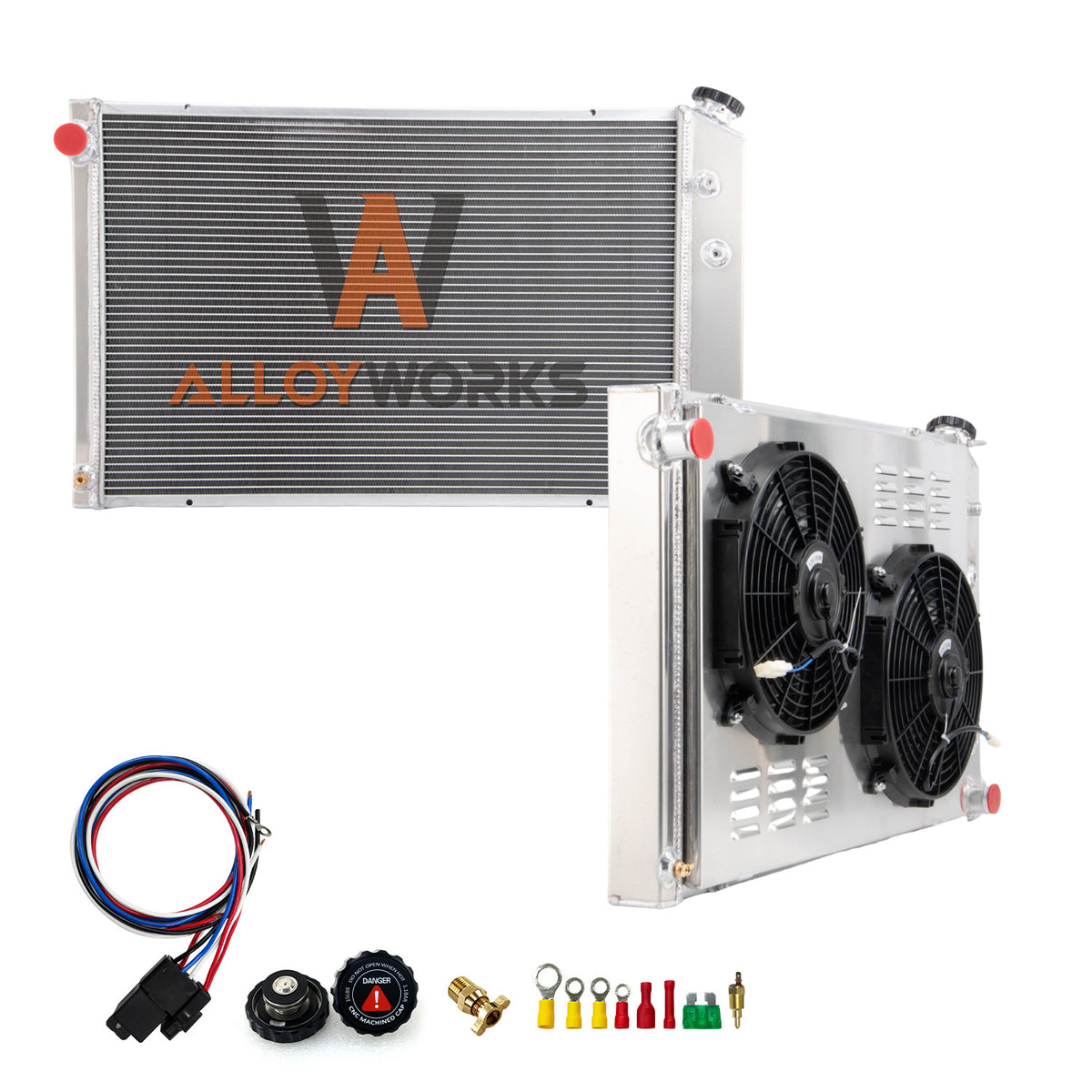

Package Include
1 X 3-Row AA5052 Aluminum Radiator
1 X CNC Machined Radiator Cap
1 X AA5052 Aluminum Shroud
2 X 12" Fans (Includes mounting kits)
1 X Thermostat Relay Kit
Fan Specification:
Maximum Fan CFM: 1730 cfm
Fan Diameter (in): 12.05"
Motor: 90W
Thickness (in): 2.5"
Number of Blades: 10 S-Type blades
Blade Material: Plastic
Amp Draw: 12.70 amps
Includes the Mounting Tabs for an Easy Zip Tie Installation

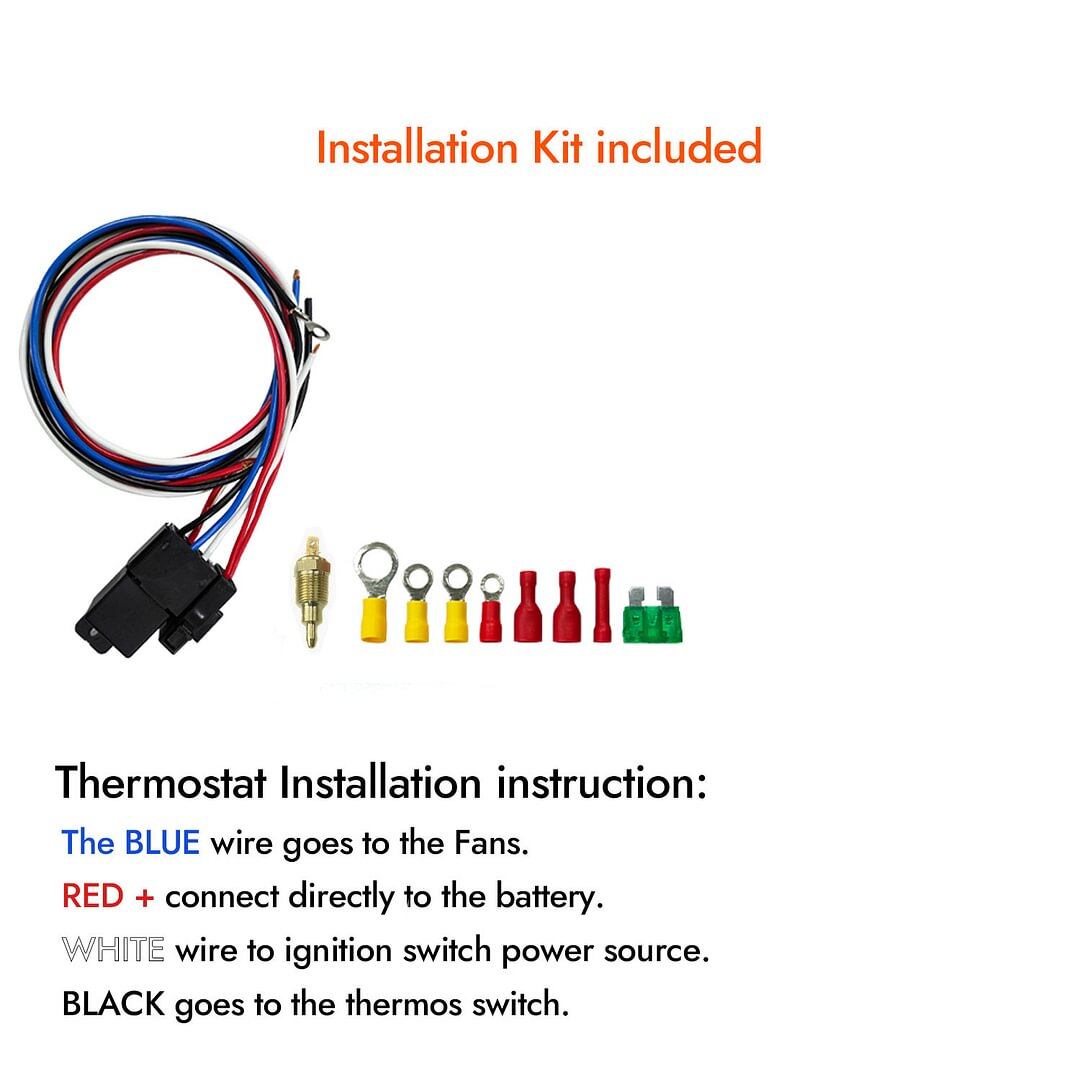

Thermostat Kit Installation:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
180'F turn-on temperature, 165'F turn-off temperature.
Probe typically threads into radiator, water outlet or manifold.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.

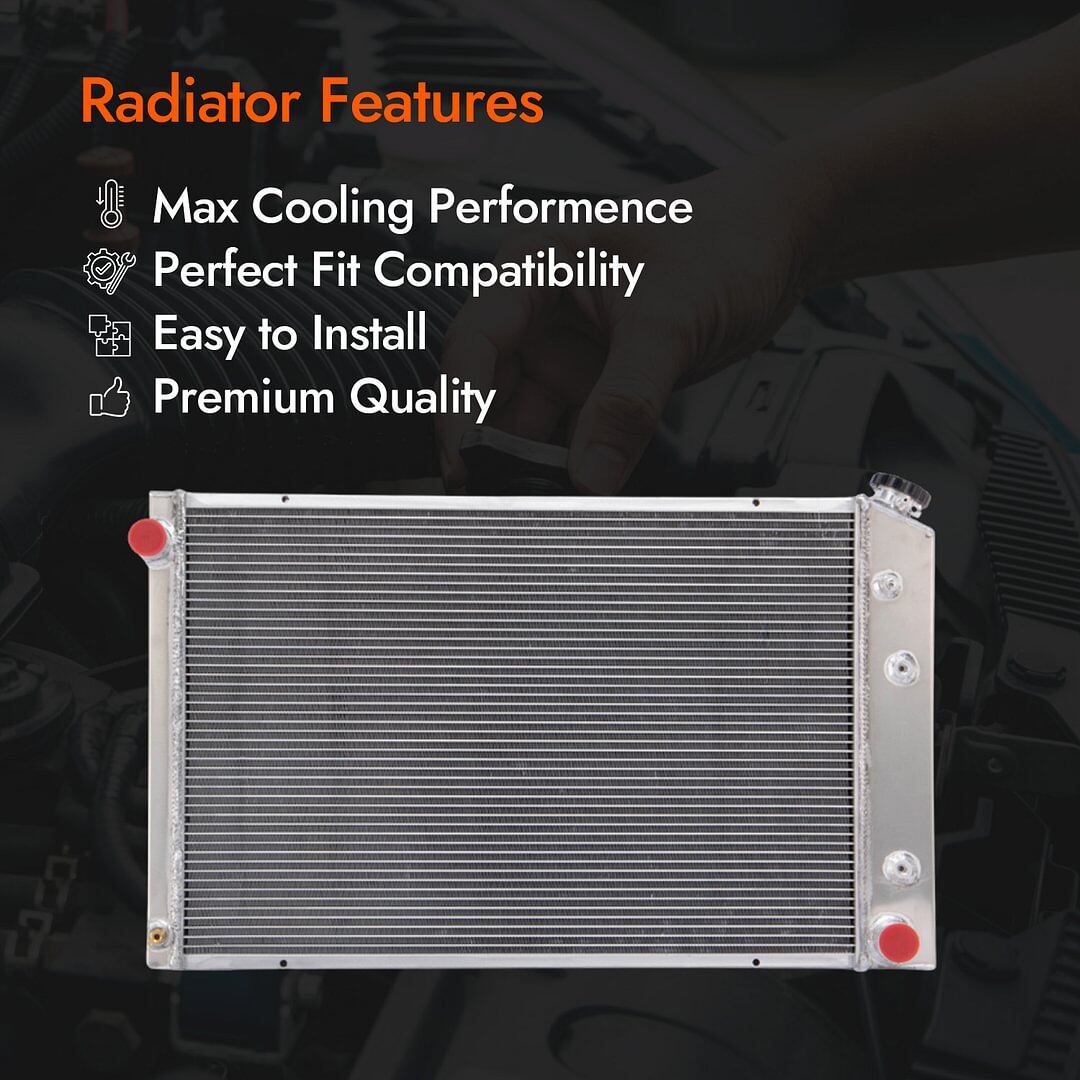

Features:
This AA5052 aluminum radiator is designed to provide maximum cooling efficiency and prevent premature engine failure. Its lightweight, high-heat-transferring aluminum features a tube-and-fin design that dramatically increases surface area, enabling heat to dissipate more efficiently. This AA5052 aluminum radiator is at least 30%-45% more efficient than stock radiators. Most importantly, it has a much higher coolant capacity than stock models, making your cooling system more efficient and more resistant to temperature surges in racing applications.
- ISO/IATF16949 Certified: Full Aluminum Radiator for Superior Cooling.
- Made from aircraft-grade AA5052 aluminum for a prolonged lifespan with a raw aluminum finish.
- Brazed core technology ensures optimum performance and reliability.
- 2mm thick AA5052 aluminum tanks and fittings for added durability.
- OEM-style brass petcock drain, offering superior durability compared to plastic versions.
